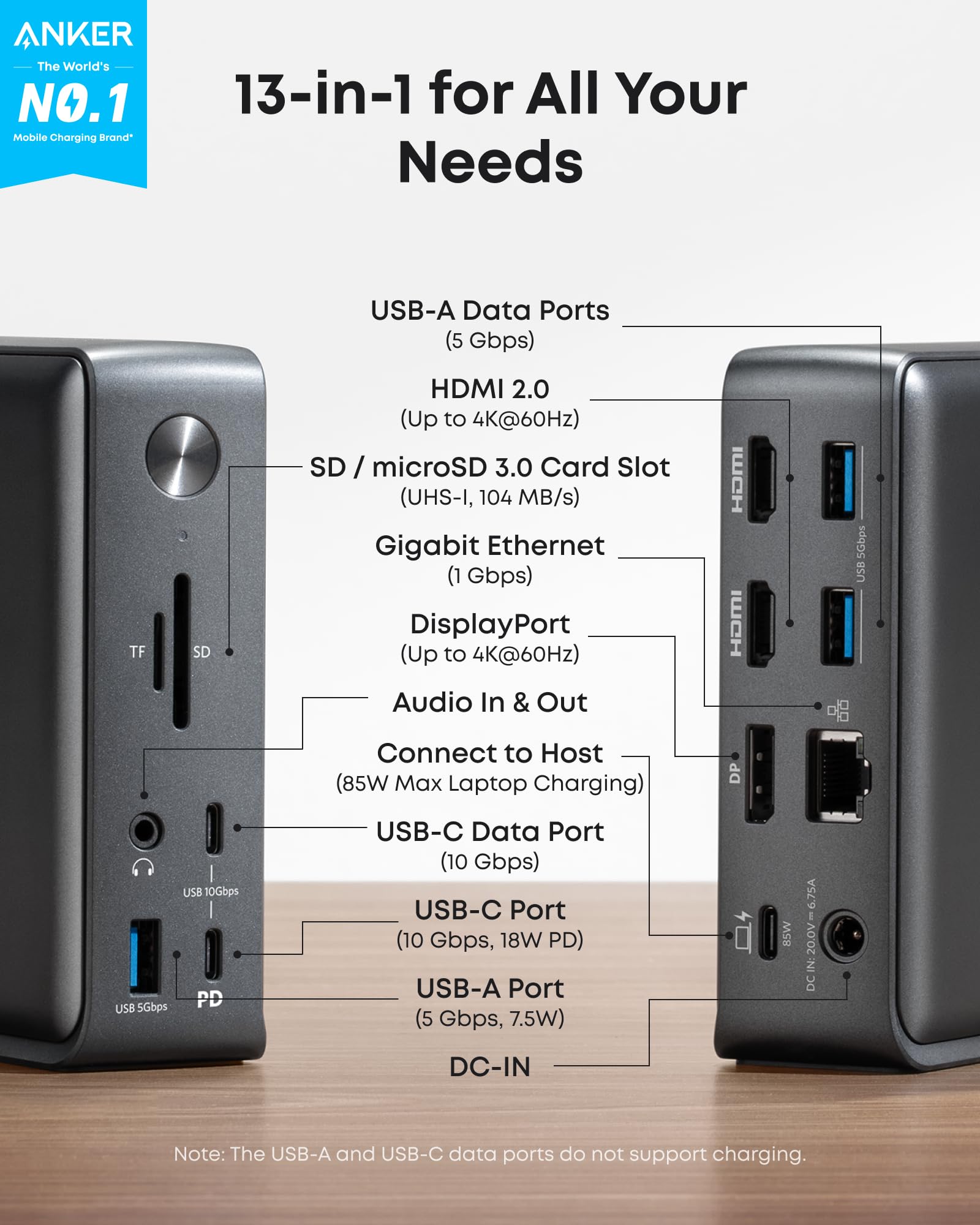

Model Number: A8392 Anker 575 USB-C Docking Station (13-in-1) Small Footprint, Superb Functionality What’s in The Box: Anker 575 USB-C Docking Station (13-in-1), 135W Power Adapter, USB-C to USB-C cable (3 ft), welcome guide. Dimensions and Weight Dimensions: 125.8 × 88.6 × 41.6 mm / 4.9 × 3.5 × 1.6 in Weight: 370 g / 13.1 oz *The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. Compatibility Information Host Requirements: The host device must support Power Delivery and DisplayPort Alt Mode or USB-C 3.1 (generation 1 or 2). Supported Operating Systems: macOS 10.12 or later, Windows 8 / 10 / 11 Media Display Information For macOS, all external monitors will display identical content.The ability to display on 4 screens simultaneously depends on the capabilities of the laptop’s graphics card. Maximum resolution when using a DisplayPort 1.4 USB-C laptop: Single monitor display: 3840x2160@60Hz via the HDMI port or DisplayPort.Dual monitor display: 2560x1440@60Hz via 2 HDMI ports, or via the HDMI port and DisplayPort.Triple monitor display: 1920x1080@60Hz via the HDMI ports and DisplayPort. Charging Information This dock supports up to 85W of charging via the USB-C upstream port on the back of the dock (indicated with a computer icon). The USB-C Power Delivery port (indicated by “PD”) supports 18W fast charging for your phone or tablet. The USB-A 3.0 port on the front supports 7.5W to charge smaller devices like smartwatches or headphones. The two USB-A data ports on the back of the dock do not support charging.Note:The USB-C port doesn't support display output and cannot power portable monitors. We do not recommend using the dock with the portable monitor as this dock cannot power the portable monitor. Frequently Asked Questions: Q1: Will this dock work with any laptop? How do I make sure my laptop works with this dock？ A: This dock works with laptops with a USB-C port that supports DisplayPort Alt Mode and Power Delivery. To confirm the USB-C port function of your laptop, consult your user manual or contact your laptop’s manufacturer. If your USB-C port doesn’t support DisplayPort Alt Mode, you won’t receive video output. If your USB-C port doesn’t support Power Delivery, the dock will work correctly with video and data (including audio and Ethernet), but would not be able to supply charging to your laptop. Q2: Can I use my own USB-C cable to connect the dock to my laptop? A: It’s recommended that you use the included 3 ft USB-C cable. If you need to use a different cable (due to loss etc.), then any other USB-C cable with support for USB 3.1 Gen 2 and 85W Power Delivery would also be compatible. Q3: Do I need to install any drivers to use the dock? A: No. Q4: Is this dock compatible with computers that have a Thunderbolt 3 port? A: Yes, however, it can only deliver a maximum bandwidth of 10Gbps, so it cannot not reach the maximum bandwidth of Thunderbolt 3 (40Gbps). Q5: Sometimes the dock doesn’t automatically reconnect after I wake up or restart my laptop. What should I do? A: This situation doesn’t happen very often, but if you are having this problem, try disconnecting and reconnecting the USB-C cable or restarting the dock. PowerExpand 13-in-1 USB-C Dock PowerExpand 9-in-1 USB-C PD Dock PowerExpand Elite 12-in-1 Thunderbolt 4 Dock PowerExpand 5-in-1 Thunderbolt 4 Mini Dock PowerExpand Elite 13-in-1 Thunderbolt 3 Dock PowerExpand 7-in-1 Thunderbolt 3 Mini Dock Add to Cart Add to Cart Add to Cart Buying Options Add to Cart Buying Options Customer Reviews 4.1 out of 5 stars 2,019 3.6 out of 5 stars 475 3.7 out of 5 stars 677 4.4 out of 5 stars 402 4.0 out of 5 stars 1,423 3.8 out of 5 stars 175 Price $219.99$219.99 $119.99$119.99 $195.64$195.64 — no data $229.00$229.00 — no data Power Input DC-IN (20V/6.5A) DC-IN (100W) DC-IN (120W) DC-IN (20V/5A) DC-IN (20V/9A) AC-IN Charging for Laptop 85W 60W Max 90W Max 85W 85W Max 45W Charging for Phone 18W (Power Delivery) 20W 20W 15W 18W (Power Delivery) / 15W (Thunderbolt 3) no data Data Transfer Speed 10Gbps 5Gbps Up to 40Gbps Up to 40Gbps Up to 40Gbps 10Gbps Video Output 4K@60Hz (Max) , macOS: SST, Windows: SST/MST 4K@60Hz 8K@30Hz 8K@30Hz 5K@60Hz 4K@60Hz Gigabit Ethernet ✓ ✓ ✓ ✓ ✓ ✓ Audio In & Out ✓ ✓ ✓ ✓ ✓ no data SD / TF Slots ✓ no data SD Slot no data 5K@60Hz ✓ Dimensions and Weight 4.9 * 3.5 * 1.6 in / 13.1 oz 5.7 * 2.5 * 1.0 in / 6.64 oz 7.3 x 2.9 x 1.3 in / 16.5 oz 4.9 * 2.8 * 0.9 in / 8.8 oz 4.9 * 3.5 * 1.6 in / 17.3 oz 4.3 * 3.5 * 1.2 in / 7.9 oz What's Included 135W power adapter, 3.9 ft power cord, 3ft USB-C to USB-C cable, Manual 100W power adapter, 3.9 ft power cord, 3.3 ft USB 3.1 Gen 2 USB-C to C cable, QSG 120W power adapter, 3.9 ft power cord, 2.3 ft Thunderbolt 4 cable, QSG 100W power adapter, 3.9 ft power cord, 2.3 ft Thunderbolt 4 cable 180W power adapter, 3.9 ft power cord, 2.3ft Thunderbolt 3 cable, Manual AC power cord, 2.3ft Thunderbolt 3 cable, Manual
